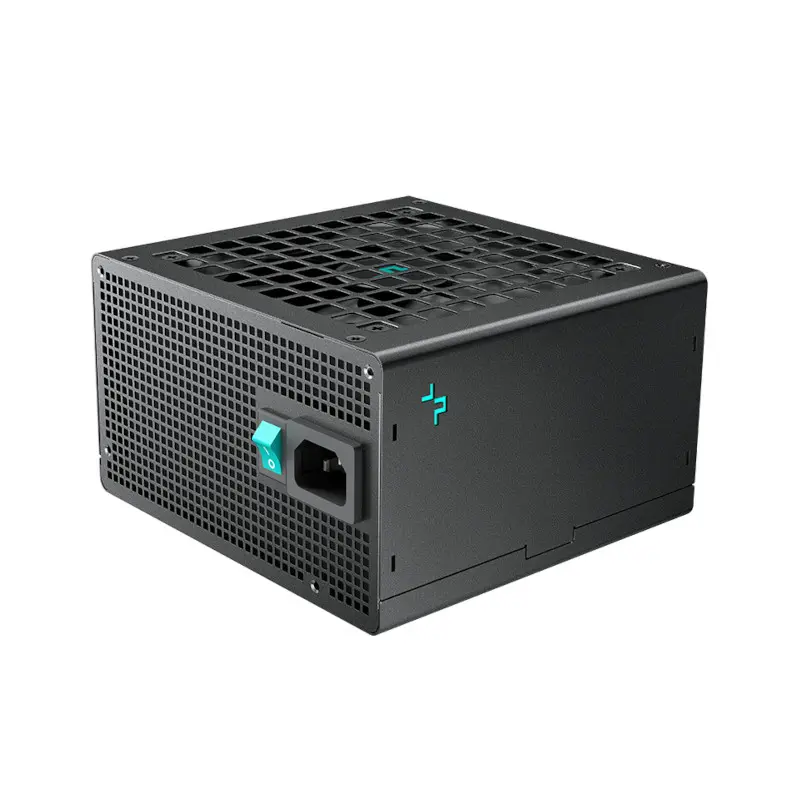

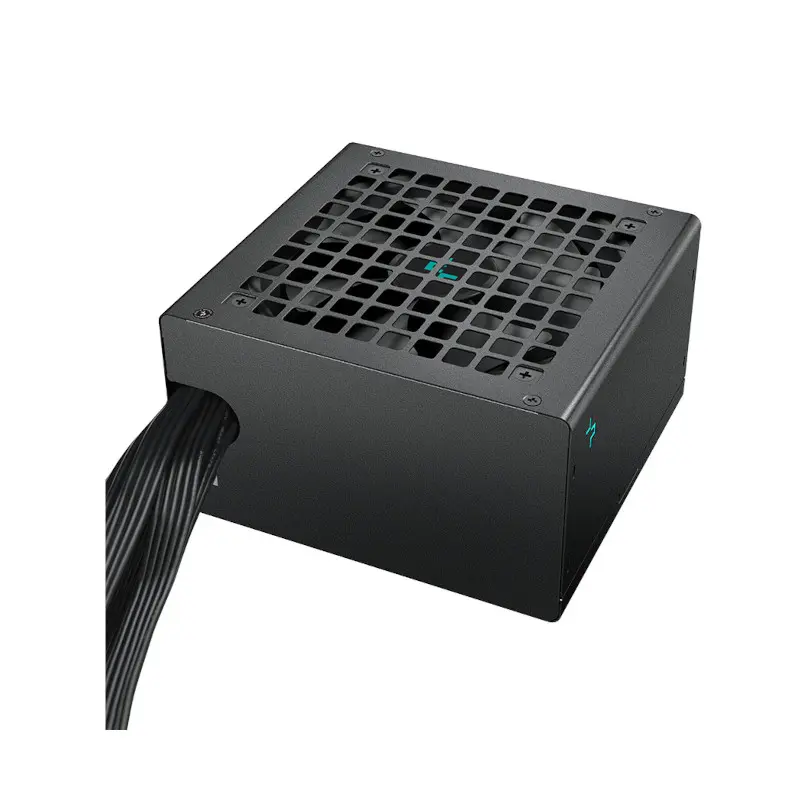

Deepcool PL650D ATX 3.1 Bronze 650 Watt SMPS

The DeepCool PL650D is a powerful and future-proof non-modular power supply that bridges the gap between budget "Bronze" units and modern hardware requirements.It is officially updated to the Intel ATX 3.1 standard, making it one of the most reliable and affordable choices for modern gaming setups.

Core Description

The PL650D is engineered to handle the high power demands of next-gen components. Its standout feature is the native 12V-2x6 (PCIe 5.1) cable, which provides direct power to modern NVIDIA RTX 40 and 50-series GPUs.It uses a dual-transistor forward topology and DC-to-DC conversion to ensure rock-solid voltage stability under heavy loads.

Technical Specifications

Key Features

• Native ATX 3.1 & PCIe 5.1: Designed to manage "power transients" or spikes—it can handle twice the total system power for 0.1ms.

• Modern GPU Support: Includes a dedicated 16AWG 12V-2x6 cable rated for up to 300W, eliminating the need for bulky and potentially unsafe triple-adapter cables.

• Premium Capacitors: High-grade electrolytic capacitors maintain a hold-up time of ≥16ms at 100% load, protecting your system during minor power fluctuations or outages.

• Silent & Reliable: The 120mm hydro-bearing fan adjusts its speed based on heat, providing a quiet experience during low-load tasks like browsing or watching videos.

Connector Count

• 1 x 24-pin Main Power (Motherboard)

• 2 x 4+4 pin CPU (EPS)

• 1 x 12V-2x6 (16-pin) PCIe 5.1 (for modern GPUs)

• 3 x 6+2 pin PCI-E (for legacy/other GPUs)

• 6 x SATA

• 2 x 4-pin Peripheral (Molex)
