Deepcool Gamer Storm PN1000M Gold ATX 3.1 Fully Modular SMPS

The DeepCool PN1000M is a high-performance, fully modular power supply designed for enthusiast-level builds. Unlike the "D" (Non-modular) series, the "M" designation indicates that every cable is detachable, allowing for a much cleaner build and better airflow inside your case.

Core Description

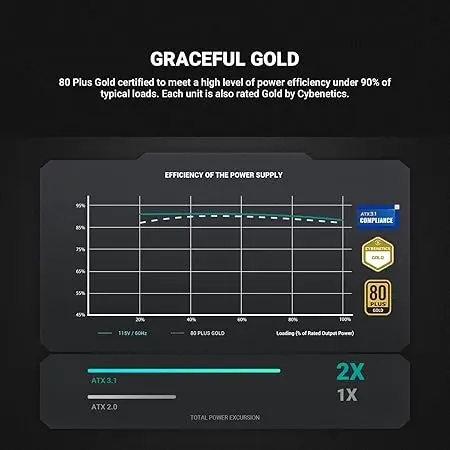

The PN1000M is a 1000W powerhouse certified with 80 PLUS Gold efficiency. It is built to the latest Intel ATX 3.1 and PCIe 5.1 standards, making it the perfect partner for flagship graphics cards. Its fully modular design means you only plug in the cables you actually need, significantly simplifying cable management in high-end rigs.

Physical Details & Weight

• Dimensions: 15.0 x 14.0 x 8.6 cm (W x L x H)

• Net Weight: ~1,950 grams (Unit only)

• Gross Weight: ~2,850 grams (Including all modular cables and box)

Key Features

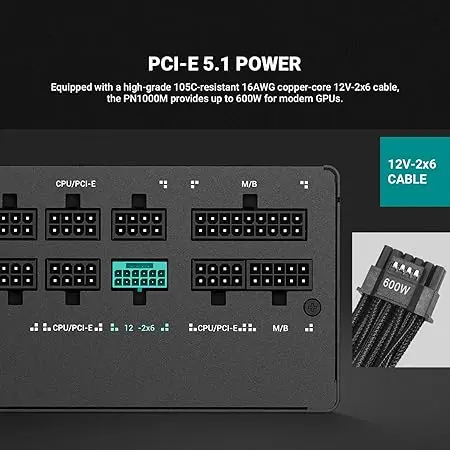

• Massive 600W 12V-2x6 Cable: Includes a native 16AWG PCIe 5.1 cable that delivers 600W directly to modern GPUs (RTX 4090/5090), ensuring clean power without adapters.

• ATX 3.1 Compliance: Capable of handling power excursions of up to 200% for the total system, providing rock-solid stability during sudden GPU load spikes.

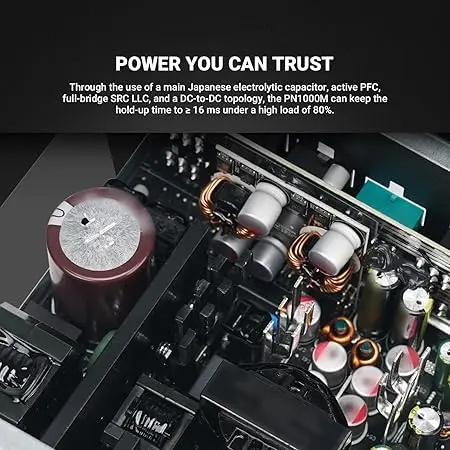

• Full-Bridge LLC Topology: Uses high-end internal components to maintain a hold-up time of ≥16ms at 80% load, effectively handling minor power flickers.

• Premium All-Japanese Capacitors: Often features high-quality Japanese main capacitors for long-term durability and reliability under high thermal stress.

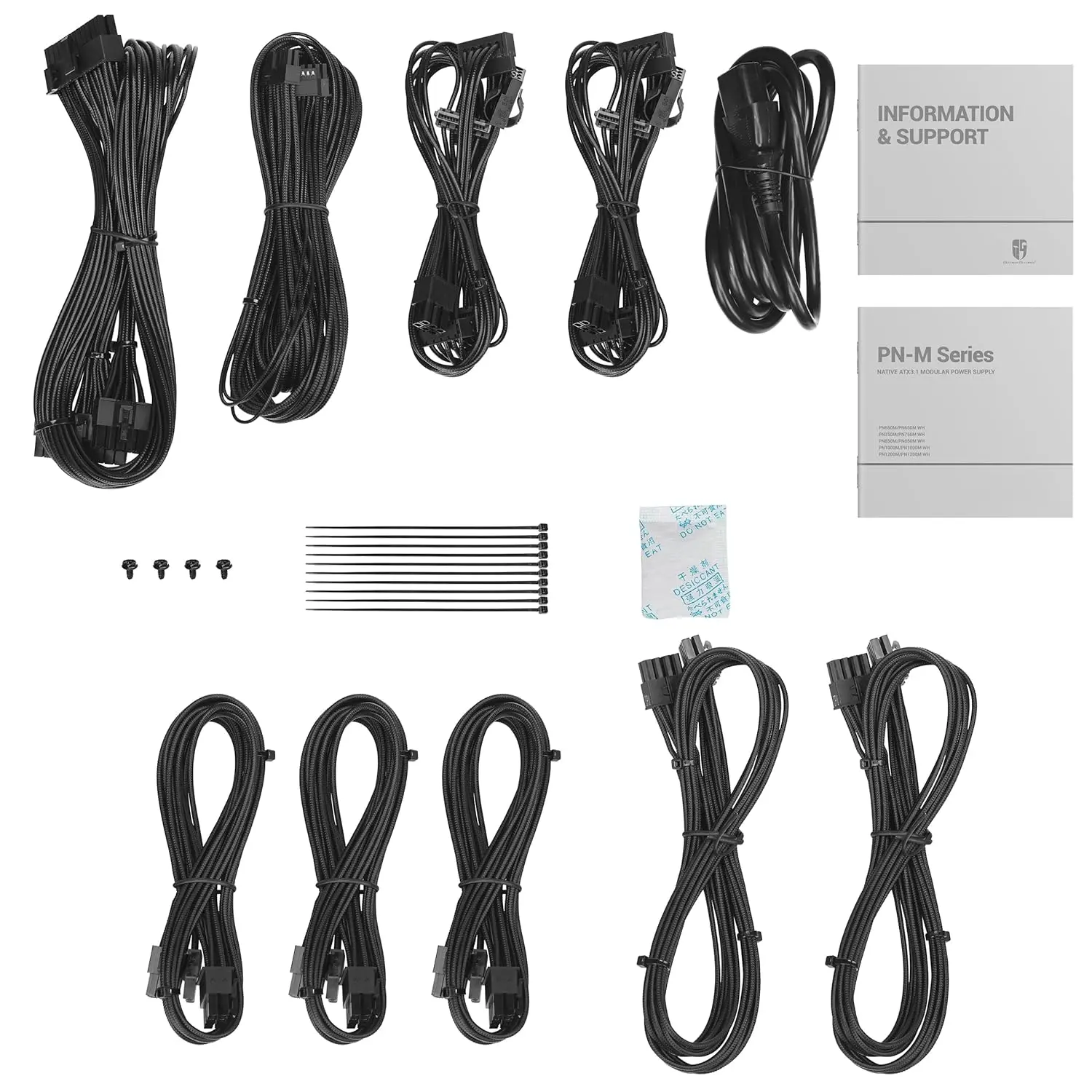

Connector Count (Modular)

• 1 x 24-pin Mainboard

• 2 x 4+4 pin CPU (EPS)

• 1 x 12V-2x6 (16-pin) PCIe 5.1 (600W)

• 3 x 6+2 pin PCI-E

• 8 x SATA

• 2 x 4-pin Peripheral (Molex)

Summary: The PN1000M is DeepCool’s top-tier solution for users who want the maximum possible power (1000W) combined with the luxury of Full Modularity. With its 10-year warranty and ATX 3.1 certification, it is a "one-and-done" investment for any high-end PC build.
