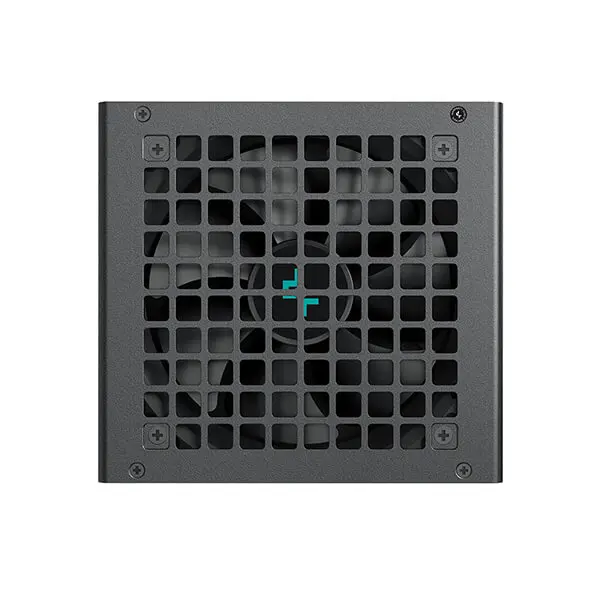

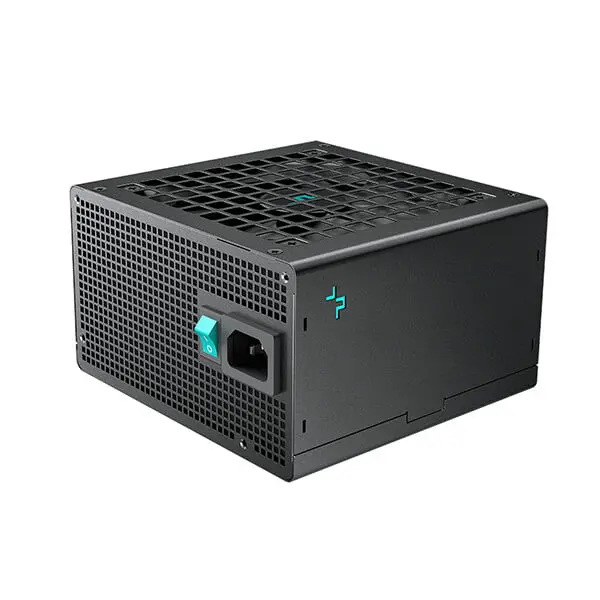

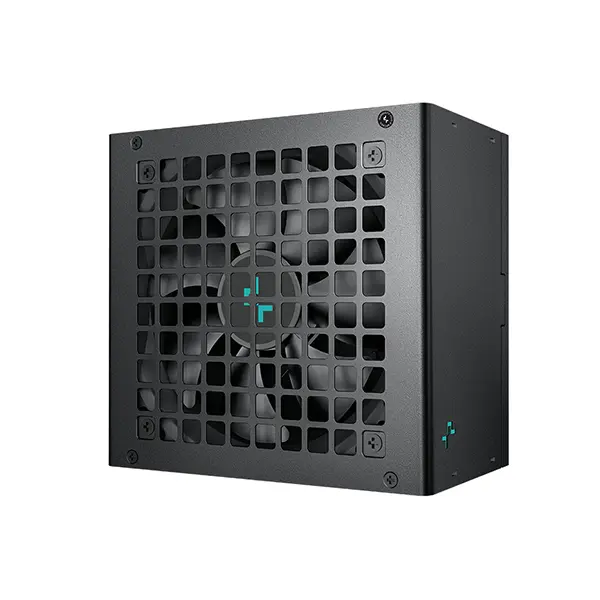

DeepCool PL550D Bronze 550W ATX 3.1 SMPS

The DeepCool PL550D is a non-modular, 80 PLUS Bronze certified power supply that stands out as a "future-ready" budget option. Unlike most Bronze-rated units, it is built to the Intel ATX 3.1 standard, making it one of the most affordable ways to get modern power features.

Core Description

The PL550D is designed for mid-range gaming builds and daily computing. Its biggest selling point is the inclusion of a native 12VHPWR (12V-2x6) cable, which allows it to power modern GPUs without needing messy adapters. It utilizes a DC-to-DC topology for stable power delivery and is rated to handle power spikes effectively.

Key Features

• Native 12VHPWR Support: Includes a 16AWG cable rated for up to 300W, specifically for newer NVIDIA 40-series and 50-series graphics cards.

• ATX 3.1 Compliance: Designed to handle transient power spikes (short bursts of high power usage) common in modern high-performance components.

• Stable Power Delivery: The use of dual-transistor forward topology and DC-to-DC conversion ensures consistent voltage levels for your CPU and GPU.

• Connector Count

• 1 x 24-pin Mainboard
• 2 x 4+4 pin CPU (EPS)
• 1 x 12VHPWR (12V-2x6)
• 3 x 6+2 pin PCI-E
• 6 x SATA
• 2 x 4-pin Peripheral (Molex)

Technical Specifications
