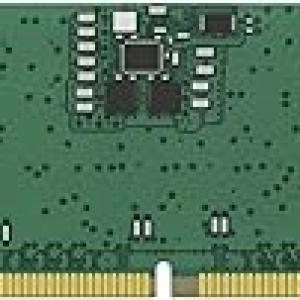

Kingston Value Series 16GB 5600MHz CL46 DDR5 Ram (KVR56U46BS8-16)

The Kingston KVR56U46BS8-16 is a 16GB DDR5 desktop memory module part of the ValueRAM series. Below are the specific technical details and engineering specifications for this model.

 Specifications

• Manufacturer: Kingston Technology

• Series: ValueRAM

• Model Number: KVR56U46BS8-16

• Memory Type: DDR5 SDRAM

• Form Factor: 288-pin DIMM

• Capacity: 16GB

• Data Rate: 5600 MT/s (PC5-44800)

Timing & Performance

• CAS Latency: CL46

• Standard Timings: 46-45-45

• Row Cycle Time ($tRC$ ): 48ns (min.)

• Refresh to Active/Refresh Command Time ($tRFC$ ): 295ns (min.)

• Row Active Time ($tRAS$ ): 32ns (min.)

Electrical & Environmental

• Operating Voltage ($VDD$ ): 1.1V (Typical)

• $VDDQ$ Voltage: 1.1V

• $VPP$ (Activation Voltage): 1.8V

• Operating Temperature: 0°C to 85°C

• Storage Temperature: -55°C to 100°C

Architecture & Physical Design

• Rank: 1Rx8 (Single Rank)

• Chip Organization: Eight 2G x 8-bit FBGA components

• Memory Depth: 2G x 64-bit

• Error Correction: On-Die ECC (Non-ECC at the system level)

• PCB Height: 1.23” (31.25mm)

• Contact Fingers: Gold-plated

Key Highlights for This Model:

1. High Compatibility: Built to JEDEC standards, ensuring it runs at its rated speed of 5600MT/s on standard motherboards without needing custom BIOS profiles (like XMP).

2. Low Profile: The 31.25mm height makes it ideal for compact builds or systems with large CPU air coolers that have limited RAM clearance.

3. Efficiency: Features an on-module Power Management Integrated Circuit (PMIC) for more stable and efficient power distribution compared to older DDR4 modules.
